CA750F3/F4K

CA750F3/F4K CA750F3/F4K CA750F3/F4K CA750F3/F4K CA750F3/F4K CA750F3/F4K CA750F3/F4K CA750F3/F4K CA750F3/F4K CA750F3/F4K CA750F3/F4K CA750F3/F4K CA750F3/F4K CA750F3/F4K CA750F3/F4K

CA750F3/F4K

Solid cast iron cast iron bed with high damping characteristics.The backlash-free roller guides and the increased (50 mm) diameter of the ball screws with accuracy class C3 guarantee static and dynamic rigidity for a long service life.

Main features

Spindle bore diameter
166
(102*) mm
Max. diameter of the workpiece to be processed over bed
850 mm
Max. diameter of the workpiece to be processed over carriage 450 mm

Description of construction

  • Solid cast iron cast iron bed with high damping characteristics.

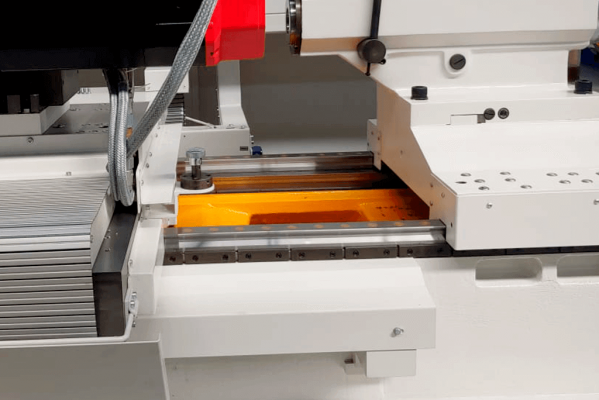

  • he backlash-free roller guides and the increased (50 mm) diameter of the ball screws with accuracy class C3 guarantee static and dynamic rigidity for a long service life.
  • The spindle unit with five precision angular contact bearings ensures the accuracy and reliability of the machine.

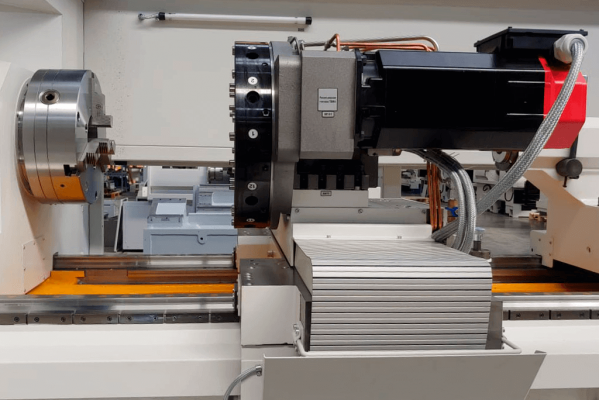

  • 12-position turret VDI50 with driven tool (optional).
  • Optical scales along all axes (optional).
  • High (up to 2262 Nm) torque ensures stability in heavy cutting conditions.
  • Workpiece weight up to 3000 kg.

Specifications

 CUTTING AREA
Max. diameter of the workpiece to be installed over bed
     850 mm
Max. diameter of the workpiece to be processed over carriage      450 mm
Distance between centers
1000
2000
3000
4000
5000

mm
mm
mm
mm
mm

Max. weight of installed workpiece

3000 kg
SPINDLE

Speed range

5-2200
(5-2800)
rpm
rpm
Speed adjustment
stepless,
at 2 ranges


Main motor power/ 30 min

30/37,5 -
Fanuc
30/37,5 -
Siemens
kW

Max. torque/ 30 min

1772/2215
(1394/1742) -
Fanuc
1360/1700
(1070/1337) -
Siemens
Nm

Chuck diameter

400

(500, 630)

mm
Spindle nose according to DIN55026
А11

Spindle bore diameter

102
(166)
mm
mm
FEED
Cutting feed range    1-4000  mm/min
Cut thread stroke limit
0,2-150         mm/rev

X/Z rapid feed

10000          mm/min
TURRET
Number of tools    12 (4)
Tool section
32x25
(32x32
40x40)
mm
mm
mm
Number of driven tools    12
Driven tool power    7,5 kW

Driven tool speed

5000 rpm

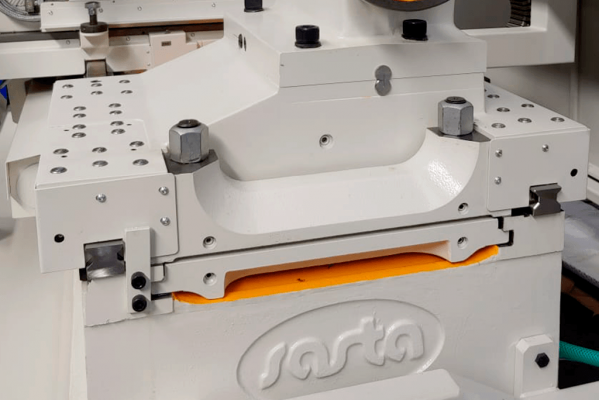

TAILSTOCK


Quill travel
240      mm
Quill diameter      120     mm
Quill taper    MT6
DIMENSIONS AND WEIGHT
Length
4445
5445
6445
7445
8445

mm
mm
mm
mm
mm

Width
without panel swivel
with panel swivel

2150
2818


mm
mm

Height
2200
mm
Weight
5800
6800
7800
8800
9800

kg
kg
kg
kg
kg

Completion of the machine

Standard equipment:

  • Fanuc 0i-TF CNC system
  • MPG portable
  • 3-jaws self centering manual chuck Ø400 mm
  • 12-position turret VDI50
  • Tailstock with live and dead centers
  • Semi-cover protection
  • Work light
  • Coolant system
  • Chip tray
  • Leveling pads

Options:

  • Siemens 828D CNC system
  • 12-position turret with driven tool, VDI50
  • 8-position turret VDI50 or 4-position turret with vertical axis
  • 3-jaws self centering manual chuck
  • 4-jaws chucks with independent jaws movement, manual
  • Pneumatic 3-jaws chucks
  • Spindle “С” axis
  • Follow and steady rests
  • Remote rest
  • Chip conveyor with in-built tank and coolant pump (instead of coolant tank)
  • Tipping chip tray (600 l)
  • Coolant gun (or pneumatic gun)
  • Air conditioner
  • Full cover (instead of semi-cover) protection
